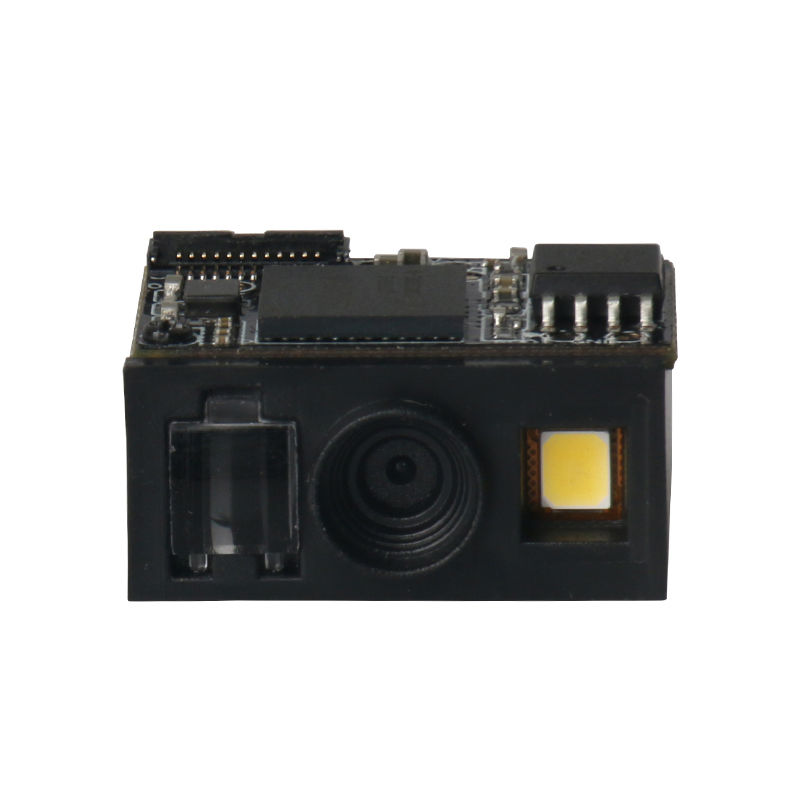

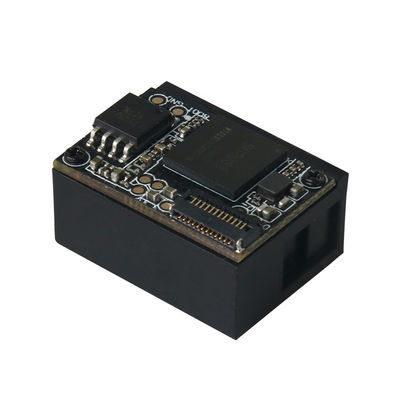

1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading

Datos del producto:

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	10

Contacto

Descripción detallada del producto

Modelo No.:	DE2120	Tipo de interfaz:	USB
Velocidad de escaneo:	25cm/s	Elemento de escaneo:	CMOS
Resolución:	4mil	Sensor de imágenes:	640*480
Modo de escaneo:	Escaneo automático, continuo	Imprimir contraste:	25%
Fuente de alimentación:	CC 3,3 V, 160 mA Trabajo	Cable FFC:	5 cm
altura de caída:	1.2m	Dimensiones:	21,2 mm x 16,0 mm x 12,0 mm
Fuente de luz:	Luz roja LED 625 ± 10 nm (objetivo), LED de 5600 K (iluminación)	UPC:	de 32 bits
Peso:	<4g
Resaltar:	1D 2D Barcode Scanner Module , DC 3.3V Barcode Scan Engine , 160mA QR Code Reader Module

1D 2D Cheap QR Code Fixed Barcode Scanner CMOS Reader Module

The DE2120 is a practical embedded barcode scanner module featuring advanced CMOS image recognition technology and an intelligent image recognition system. Capable of scanning universal 1D and 2D codes, it supports multiple interfaces including USB and TTL, and can read barcodes from paper, goods, screens, and other media. Easily integrated into various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Key Features

Advanced CMOS image recognition technology
Supports both 1D and 2D barcode scanning
Multiple interface options (USB, TTL)
Compact and lightweight design
Wide scanning angle and depth of field
Robust construction for industrial environments

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan angle	Pitch:±45°, Roll: ±360°, Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Weight	<4g
Dimensions	21.2mm(L) × 16.0mm(W) × 12.0mm(H)
Communication Mode	USB(USB-KBW,USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V @160mA(Work)

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post

2D Codes: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec

Environmental Specifications

Parameter	Specification
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes for high Temp. (60ºC), 30 minutes for low Temp. (-20ºC)
Transport vibration Test	10H@125RPM
