Name: Handheld 2D Barcode Scanner with 1.5m Drop Height 2000mAh Battery and 160g Lightweight Design for Efficient Scanning
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Inicio Productos escáner de código de barras 2D

Handheld 2D Barcode Scanner with 1.5m Drop Height 2000mAh Battery and 160g Lightweight Design for Efficient Scanning

Datos del producto:

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	15

Contacto

Descripción detallada del producto

Modelo no.:	Se trata de una serie de medidas de seguridad.	Tipo de interfaz:	USB
Elemento de escaneo:	CMOS	Resolución de la cámara:	640*480
Resolución de código de barras:	3mil Code39	Profundidad de campo:	30-600 mm
Modo de escaneo:	Manual, continuo, escaneo automático	Imprimir contraste:	15%
UPC:	32 bits	Longitud del cable:	1,5 m
Peso:	160 g	Velocidad el descifrar:	65cm/s
Capacidad de batería:	2000máh	Tiempo de carga:	4.5H
Dimensiones:	L165.5 mm * W63.5 mm * H92.3 mm
Resaltar:	1.5m Drop Height 2D Barcode Scanner , 2000mAh Battery Handheld Barcode Scanner , 160g Lightweight QR Code Scanner

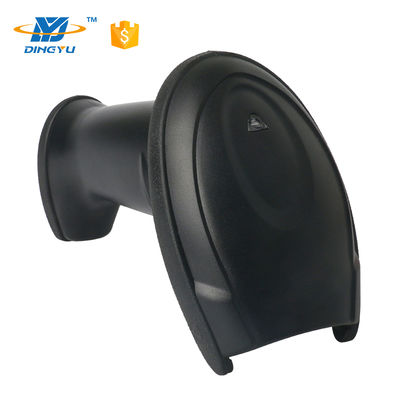

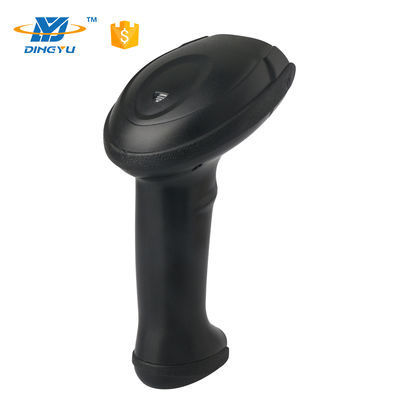

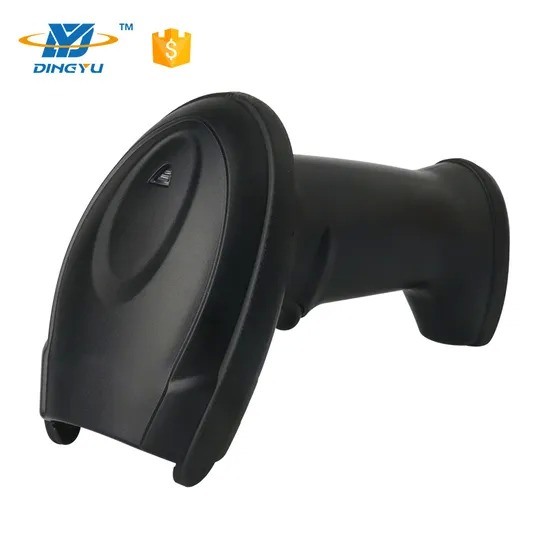

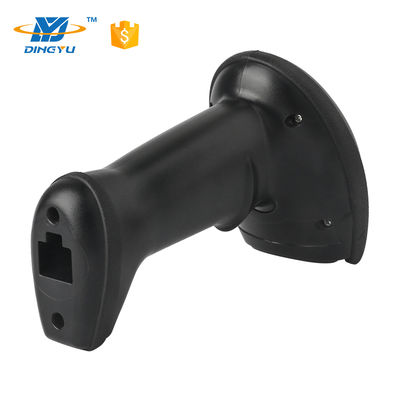

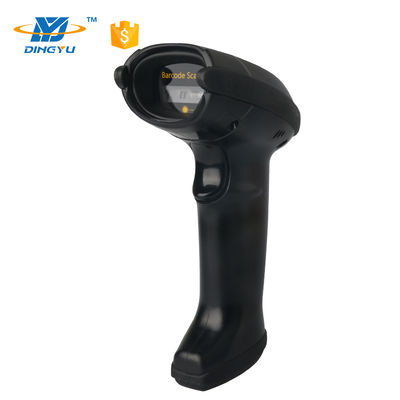

DS5900-2D Wired 2D Handheld Barcode Scanner

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail, mobile payment systems, and inventory management.

Key Features

High-performance CMOS scan technology
Red LED light source with automatic brightness adjustment
32-bit processor for fast decoding
Multiple scan modes: Manual, Continuous, Auto Sense
Wide scanning angle capability
Supports extensive 1D and 2D barcode symbologies
Rugged design with 1.5m drop resistance

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480
Minimum Resolution	≥3mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	30-600mm
Scan View	41° × 31°
Scan Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Print Contrast Signal	≥15%
Weight	≈160g (without cable)
Dimensions	165.5mm × 63.5mm × 92.3mm
Interface	USB
Cable Length	1.8m
Power Supply	DC5V input, decoding current: 200mA
Operating Temperature	-20ºC to 55ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, and more.

2D Codes: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, and more.

Product Images
